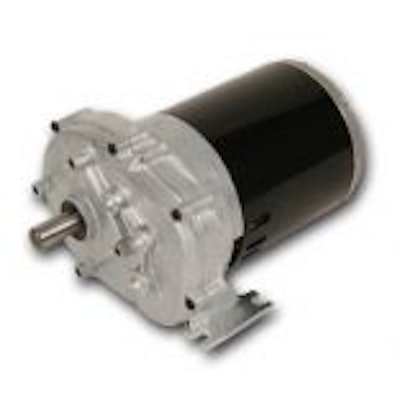

VWDIR20 AC gearmotors are fully backward compatible, and feature
flexible foot or face mounting with 600 in-lb (68.8 N-m) continuous
torque rating. Gearmotors also features 1/4 horsepower (186 watts) 115V, 60 Hz split
phase electric motors. Integral gear reducers provide a phenolic high
speed gear for low noise and steel gearing in subsequent stages, with
ratios ranging from 14:1 to 286:1. Corresponding fixed output speeds are from 120 to 6 RPM, with
continuous torque ratings from 100 to 600 in-lbs (11.3 to 67.8 N-m).
