Integrated Stepper Motor Drives

Beckhoff's ASI8100 series offers compact integrated stepper motor drives with EtherCAT connectivity, enabling space-saving machine designs and simplified installation.

Beckhoff Asi8100 Print

This content was written and submitted by the supplier. It has only been modified to comply with this publication’s space and style.

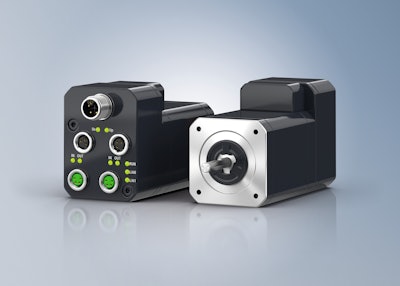

The ASI8100 stepper motor with built-in drive from Beckhoff adds another space-saving tool to the company’s broad range of compact drive technology products (up to 48 V DC). The ASI8100 series combines a stepper motor, stepper motor output stage, and fieldbus connection in a fully integrated design. These EtherCAT devices mount directly on the machine without a control cabinet or upstream I/O, allowing for highly compact, control cabinet-free machines.

The ASI8100 series covers all motion requirements for stepper motors in the power range up to 250 W. Easy-to-read status LEDs report drive conditions. With the integrated travel path control, simple function blocks for motion applications are built in. The standardized connectors – M8 for EtherCAT and M12 for power – minimize assembly time, cost, and complexity. The two additional I/Os enable effective execution of drive-related functions, such as the detection of end positions or latching.

The stepper series starts with NEMA 17 drives (42 mm), available in two stack lengths with a 0.29 Nm or 0.8 Nm holding torque. Four additional NEMA 23 devices (56 mm) offer holding torques of 0.75 Nm, 1.4 Nm, 2.35 Nm, and 2.5 Nm. Pre-assembled cables and infrastructure components, such as IP67 distribution box modules, are available as accessories.
