EtherCAT Box

The Beckhoff EP3751-0260 EtherCAT Box integrates an accelerometer and gyroscope in a compact module for measurement of acceleration, vibration, and rotational motion.

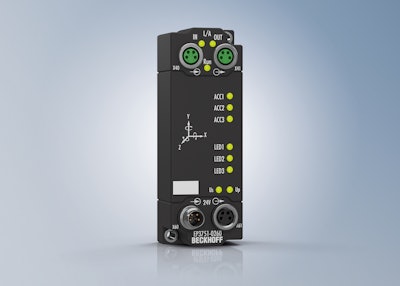

Beckhoff Ep3751 0260 Web

This content was written and submitted by the supplier. It has only been modified to comply with this publication’s space and style.

The EP3751-0260 EtherCAT Box from Beckhoff provides accurate detection of acceleration and rotational motion. With this IP67-rated module, engineers can optimize positioning and measurement in wide-ranging applications.

As a replacement for multiple previously separate devices, the machine-mountable EP3751-0260 connects an acceleration sensor with an inertial measurement unit (IMU), such as a gyroscope, in a housing that measures just 30 x 86 x 22 mm. As such, this unit can detect shock, vibration, and tilt, and deliver all measured data as pre-processed values and raw sensor data.

Based on EtherCAT Box technology, the module integrates an ultra-low-noise, three-axis accelerometer with a 20-bit resolution and an adaptable measuring range of ±2, ±4, and ±8 g. The sampling frequency is 4 kHz. The built-in sensor is suitable for applications where low frequencies need to be monitored with as little noise as possible – e.g., monitoring building work, bridge monitoring, robotics, or condition monitoring.

The EP3751-0260 also features a low-noise, temperature-stable three-axis MEMS gyroscope sensor (6DoF IMU) to record even complex rotational motion. These two sensors enable high-precision measurement for a wide variety of motion applications using just one versatile I/O box module.

The high-performance EtherCAT connectivity ensures delay-free transmission to the evaluating measuring system. The sensor data is parameterizable and can be transmitted as raw values (unprocessed and unfiltered) or as pre-processed measurement data. The latter can then be filtered, processed, and evaluated using TwinCAT Analytics software.
