For OEMs building equipment destined for harsh and unpredictable environments, interface reliability isn’t optional—it’s mission critical. EXOR’s Outdoor HMI series, part of the rugged eX700 G line, offers high-performance visualization and control solutions engineered to operate where standard HMIs fail.
Designed for the Elements
Outdoor HMIs feature sunlight-readable, high-brightness displays with optical bonding to minimize glare and condensation while improving contrast and impact resistance. Wide operating temperature ranges, all-metal enclosures, and conformal-coated boards protect against extreme heat, cold, dust, and corrosive atmospheres—ideal for industries including marine, oil & gas, mining, and chemical processing.
Certified for Critical Applications
Built for compliance, these HMIs carry:
- IECEx Zone 2/22 & ATEX Zone 2/22 for hazardous environments
- UL/cULus listing for hazardous locations in North America
- DNV marine certification
- Additional industry approvals to meet stringent global standards
Connectivity and Control at the Edge
Each unit ships with JMobile runtime for intuitive HMI development and native OPC UA client/server functionality for secure, standards-based communication. An optional CODESYS V3 runtime adds advanced PLC capabilities, while integrated IIoT protocols allow seamless interaction with cloud services and enterprise systems.
For OEMs, Integrators, and Industrial End Users
The Outdoor HMI range addresses a persistent challenge: delivering high-availability, high-visibility operator interfaces that survive the environmental demands of mobile, remote, or hazardous deployments. For OEMs, this means fewer service interventions, longer lifecycle performance, and reduced total cost of ownership.

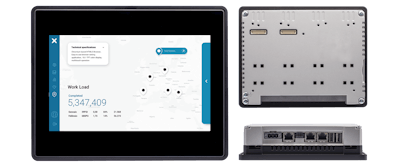

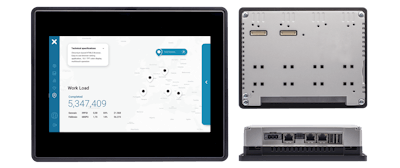

Outdoor HMI – Quick Specs
Display
- High-brightness sunlight-readable TFT LCD
- Optical bonding for reduced glare, improved contrast, and impact resistance
- Sizes available: 7”, 10.1”, and 15.6”
Environmental
- Operating temperature: –30°C to +70°C (model dependent)
- All-metal enclosure with IP66/IP69K front protection
- Conformal-coated electronics for corrosion resistance
Certifications
- IECEx Zone 2/22 & ATEX Zone 2/22 (hazardous locations)
- UL/cULus for Class I Div 2 hazardous locations
- DNV marine approval
- CE, UKCA
Performance & Control
- JMobile runtime pre-installed for HMI development
- Native OPC UA client/server for secure industrial communication
- Optional CODESYS V3 runtime for integrated PLC control
- Multiple IIoT protocols for cloud and enterprise connectivity
Connectivity
- Ethernet, serial, USB, and optional fieldbus expansion
- Integrated VPN for secure remote access
Availability
EXOR’s Outdoor HMI series is available now as part of the eX700 G line. It can be deployed in single-site operations or scaled across global installations.
