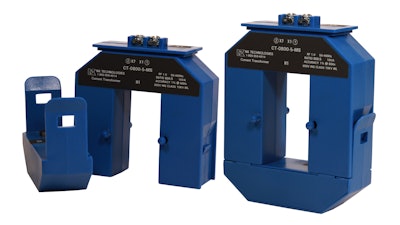

Combining a current sensing element and signal conditioner into a single package, the AT/ATR-MS Series AC Current Transducer from NK Technologies can accurately monitor loads up to 800 amps. The large, easy-to-install, split-core design allows for installation over existing conductors without the need to disconnect the load, even in applications with multiple conductors per phase.
AT/ATR-MS Series AC Current Transducer features include:
- Industry Standard Output: 4-20 mA signal proporational to the AC current, compatible with most automation systems
- Loop Powered: Use the “live zero” output to verify proper connections where the sensor output is 4 mA with no current through the sensing ring
- Split-core Case: Sensing window provides ample space for bus bar, single or multiple conductors
- Factory Calibrated: Eliminates zeo and span potentiometer adjustment
- Meets UL, CUL and CE Approval
