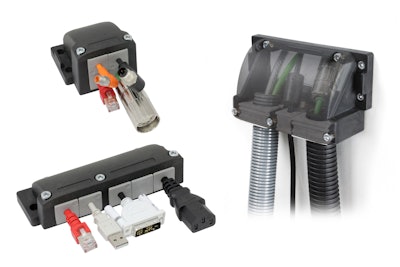

The KEL-FG redesigned flange panel entry from icotek is more sturdy and easier to mount than its predecessors, KEL-FG-A and KEL-FG-B. The innovations for this product are the streamlined design, integrated threaded bushings, and two new flange sizes. This newly designed KEL-FG flange enclosure includes all of the benefits of the previous KEL-FG style, preassembled cable routing, secure sealing, and strain relief at a 90 degree angle to the enclosure or machine wall (in accordance to DIN EN 62444).
The flat design characterizes the new sizes of the single-row flange housing KEL-FG-E (KEL-FG E3 for 24 x 65 mm and KEL-FG E5 for 24 × 112 mm). The new enclosures are ideal for applications where space is limited (such as industrial PCs and control panels). Hoses and pipes with a maximum diameter of 17 mm can be secured using these two new flanges along with icotek’s small KT cable grommets. An additional flat rubber gasket is included in all KEL-FG shipments.
