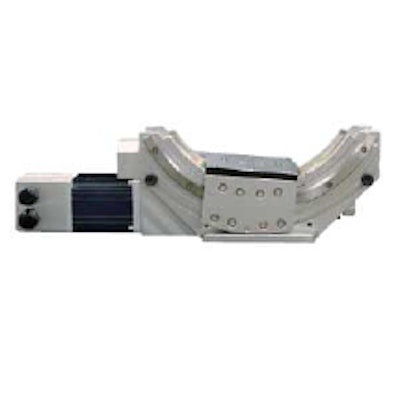

AGC goniometers can be mounted to standard optical tables, as well as
standard Aerotech rotary stages, to provide roll, pitch, and yaw about
a common 3-axis intersection. Performance includes: ±12 arc sec
accuracy; ±10 arc secrepeatability; 3.5 arc sec resolution; a maximum
speed of 78 degrees/second;and a maximum load of 50 kg. This flexible
stage series is designed for optical alignment, payload tip/tilt, beam
steering, sensor calibration, laser applications, automated
manufacturing and/or testing, and multi-axis diffractometer systems.
