Modular Pull Clamping System

IMAO Fixtureworks’ modular pull clamping system allows for 5-axis machining without tool interference. It can also be used as a mechanical zero point clamping system for quick fixture change with 0.005 mm accuracy.

This content was submitted directly to this website by the supplier.

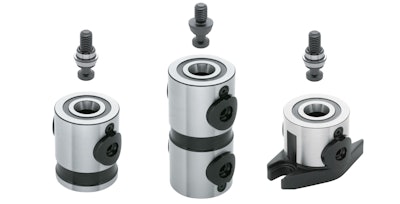

Modular Clamping System

Compact in size and completely modular, this versatile and simple clamping system allows easy height adjustment by stacking the modules. The pins or screws can be easily attached to the underside of a plate or a workpiece for a standardized locating.

The modular clamp bodies are offered in flanged, double, and single types for a variety of mounting configurations. Together with the bushings, tapered pins and clamping screws, this system is designed to save space and increase efficiency in a variety of clamping applications.

For vertical applications, the modular hook-type clamping system enables you to support the workpiece quickly and safely before clamping.

Specifications, CAD models, pricing and ordering are available online. Customers can also request a quote or technical product assistance.
